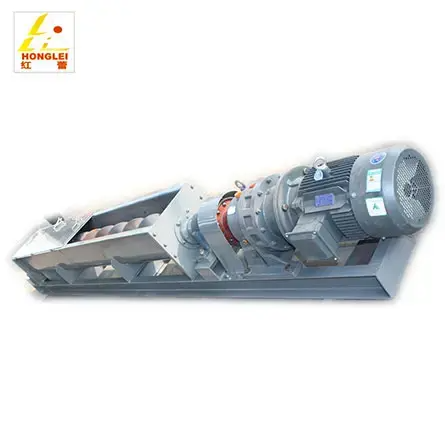

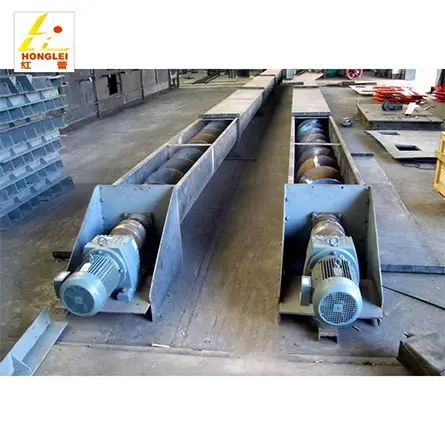

Screw conveyor
Offer OEM & ODM service

For product pricing, customization, or other inquiries:

Get A Free Quote

Description


Model Number: LS160-800

Brand Name: Honglei

Min. Order: 1 unit

FOB Price: US$ 1300 - US$ 50,000 per unit (Pieces)

FOB Port: Shanghai

Lead Time: 30 days

Payment Terms: Telegraphic Transfer (TT,T/T)

Country of Origin: China (mainland)



Key Specifications/Special Features

simple structure

small cross-sectional area

low cost

convenient operation

flexible arrangement of inlet and outlet ports, and can meet the process

requirements of multi-point feeding and multi-point discharging.



Raw MaterialCarbon steel
ProcessShell blanking, shell assembly, housing welding, electric actuator debugging, paint packing, shipment.
Main ServiceAccording to your drawing
Working Condition—20℃~50℃. The material temperature ≤200℃Conveying inclination≤20°.Conveying distance ≤40m(if conveying Distance is 40m-70m and adopt dual end drive type)
Conveying MaterialMain conveying powder, small particle, small block material.It is not suitable to transport materials with high viscosity, easilyDeterioration and caking.
FinishOEM and ODM services
Tolerance2mm
Main EquipmentHousing, screw shaft, driving device,in-out material mouth
CertificatesISO 9001



Delivery Details

FOB Price: US$1300  - US$50,000 per unit (Pieces)
FOB Port: Shanghai
Lead Time: 30 days

HTS Code:
Dimensions per Unit:95X1800X160----380X3200X700  (minimum size--maximum size)
Weight per Unit: according to the length and specific requirement decide the weight.
Units per Export Carton:100
Export Carton Dimensions L/W/H: 40 × 60 × 60 Centimeters
Export Carton Weight:  Kilograms
